MD11/B717 style NAVIGATION DISPLAY

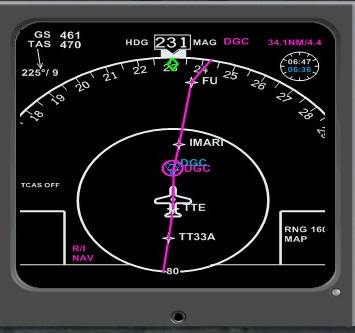

Navigation display based on the look and feel of the McDonell Douglas MD11, Boeing 717 Navigation Display.
Features:
· Flight Plan/Route track display
Displays active flight plan route track and waypoints, aircraft heading oriented, or North oriented
map modes.
· HSI compass Rose, and Arc modes
Displays ILS/approach or route NAV information in Map compass, and ARC modes. In arc mode
the tuned active Navaid position and OBS radial is displayed relative to the aircraft's position.
· TOC/TOD display
Displays FMC calculated top of climb, top of descent positions.
· Airports/ Navaids Display
Displays nearby VOR's, NDB's,Intersection/Fixes and /or Airports when the Nav,APT,FIX modes are turned on.
· Tuned VOR's
Displays radio tuned VOR's position relative to aircraft's current position in Map modes.
· FIR/ARTCC boundary display
Displays nearby ARTCC/FIR Air traffic control boundaries.
· TCAS display
Display nearby TCAS targets, and RA/TA alerts in Map modes.
· Reference FIX information
Displays in Map mode FMS specified reference Navaid/fix position, range arc, and radial relative
to aircraft's current location.
· EFIS control panel
An EFIS control panel gauge is included to allow setting of the various Navigation Display modes.
|
